Please check with your service provider to ensure support for specific bands.
Network & Connectivity Bands
5G: n1 (2100), n2 (1900 PCS), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n26 (850), n28b (700), n28a (700), n38 (2600), n40 (2300), n41 (2500), n66 (1700), n75 (1500), n77 (3700), n78 (3500), n257 mmWave (28GHz), n258 mmWave (26GHz), n260 mmWave (39GHz), n261 mmWave (28GHz)
4G LTE: B1 (2100), B2 (1900), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B17 (700), B18 (800), B19 (800), B20 (800), B25 (1900+), B26 (850), B28b (700), B28a (700), B32 (1500), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500), B66 (1700/2100)
3G: B1 (2100), B2 (1900), B4 (1700/2100 AWS A-F), B5 (850), B8 (900)
2G: B2 (1900), B3 (1800), B5 (850), B8 (900)
Body
• Dimensions (Unfolded): 158.4 x 143.2 x 4.2 mm
• Dimensions (Folded): 158.4 x 72.8 x 8.9 mm
• Weight: 215 g (7.58 oz)
• Build:
– Glass front (folded): Gorilla Glass Victus Ceramic 2
– Plastic front (unfolded)
– Glass back: Gorilla Glass Victus 2
– Aluminum frame: Advanced Armor aluminum
• SIM: Dual Nano-SIM + multiple eSIM (max 2 active)
• IP Rating: IP48 dust and water resistant (dust > 1mm; submersible up to 1.5m for 30 min)
• Stylus Support: Yes
Display
• Main Display: Foldable Dynamic LTPO AMOLED 2X, 120Hz, HDR10+, 2600 nits (peak)
• Size: 8.0 inches (~90.0% screen-to-body ratio)
• Resolution: 1968 x 2184 pixels (~368 ppi)
• Additional: Titanium plate layer for structural support
• Cover Display:
– Type: Dynamic LTPO AMOLED 2X, 120Hz
– Size: 6.5 inches
– Resolution: 1080 x 2520 pixels (~422 ppi)
– Protection: Corning Gorilla Glass Ceramic 2
Platform
• Operating System: Android 16, up to 7 major Android upgrades
• UI: One UI 8
• Chipset: Qualcomm SM8750-AC Snapdragon 8 Elite (3 nm)
• CPU: Octa-core (2x4.47 GHz Oryon V2 Phoenix L + 6x3.53 GHz Oryon V2 Phoenix M)
• GPU: Adreno 830 (1200 MHz)
Memory
• Card Slot: No
• Internal Storage Options:
– 256GB with 12GB RAM
– 512GB with 12GB RAM
– 1TB with 16GB RAM
• Storage Type: UFS 4.0
Main Camera
• Triple Camera Setup:
– 200 MP, f/1.7 (wide), PDAF, OIS
– 10 MP, f/2.4 (telephoto), PDAF, OIS, 3x optical zoom
– 12 MP, f/2.2 (ultrawide), 120˚, dual pixel PDAF
• Features: LED flash, HDR, panorama
• Video:
– 8K@30fps
– 4K@60fps
– 1080p@60/120/240fps (gyro-EIS)
– 720p@960fps (gyro-EIS)
– 10-bit HDR, HDR10+
Selfie & Cover Cameras
• Inner Selfie Camera: 10 MP, f/2.2, 18mm (ultrawide), 1.12µm
• Cover Camera: 10 MP, f/2.2, 24mm (wide), 1.12µm
• Features: HDR
• Video: 4K@30/60fps, 1080p@30/60fps, gyro-EIS
Audio
• Loudspeakers: Yes, stereo speakers
• 3.5mm Jack: No
• Audio Quality: 32-bit/384kHz audio
• Tuned by: AKG
Connectivity
• WLAN: Wi-Fi 802.11 a/b/g/n/ac/6e/7, tri-band, Wi-Fi Direct
• Bluetooth: 5.4, A2DP, LE, aptX HD
• Positioning: GPS, GALILEO, GLONASS, BDS, QZSS
• NFC: Yes
• Radio: No
• USB: USB Type-C 3.2, OTG
Sensors & Features
• Fingerprint Sensor: Side-mounted
• Sensors: Accelerometer, Gyro, Proximity, Compass, Barometer
• Special Features:
– Samsung DeX (desktop experience)
– Ultra Wideband (UWB) support
– Circle to Search
Battery
• Type: Li-Po 4400 mAh (non-removable)
• Charging:
– 25W wired (QC2.0, 50% in 30 min)
– 15W wireless
– 4.5W reverse wireless
Miscellaneous

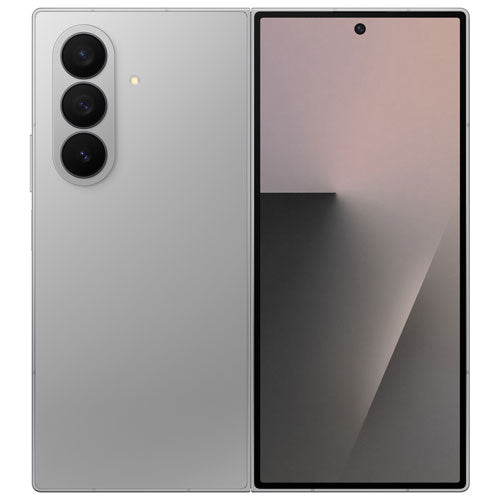

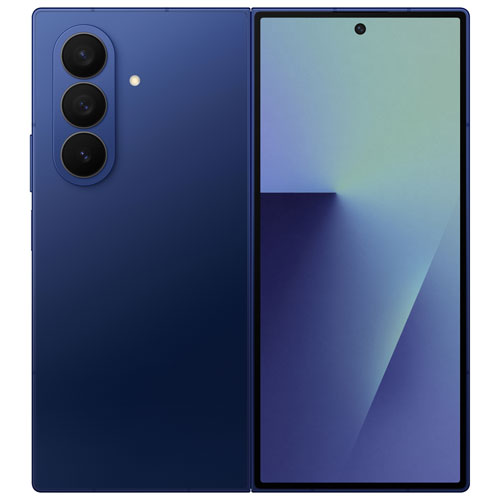

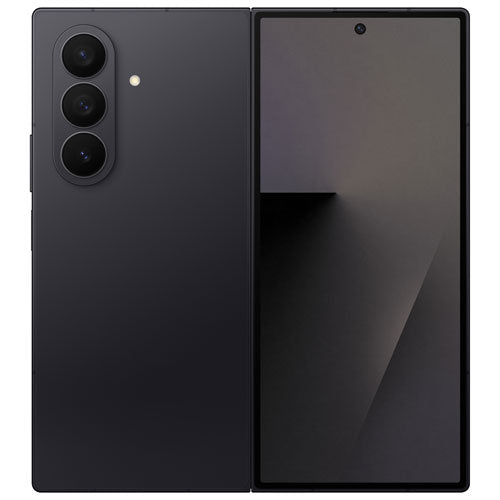

• Available Colours: Blue Shadow, Silver Shadow, Jet Black
Model Number: SM-F966W
International devices will include chargers from their country of origin. However wall converters will be included in the package for compatibility.
